The NovaStar system provides features to ingest data from multiple data sources and formats including radio (e.g., ALERT and ALERT2), satellite, cellular, serial, and internet sources, using a design that supports periodic and event-driven data reports. NovaStar systems are implemented using a configuration that meets the requirements of an organization, including redundant collection servers and data publishing using web service API and data viewing applications. A NovaStar system provides applications that are designed for different user roles.
NovaStar allows various alarm triggers to be configured to detect critical conditions, with resulting displays and notifications. NovaStar can be integrated with other systems and components, including GIS, flooded roadway flashers and controls, sirens, mass notification systems, and other systems.
NovaStar Operator
Product Suite
NovaStar Core
Primary Users
- NovaStar Administrators
The “Engine” of NovaStar
- Automates processes configured and managed by NovaStar administrators.
- Collects environmental and telemetry data from remote stations.
- Processes and validates incoming data.
- Stores everything in a central database.
- Runs automated background services and scheduled tasks.
- Supports redundancy/failover between servers.
- Provides data access to web apps, dashboards, external systems.
Contact us: info@trilynx.systems
NovaStar Field Tech
Primary Users
- Field Technicians.
- System Integrators.
Configure, Maintain, and Troubleshoot Field Equipment
- Tool for field technicians installing new stations and performing maintenance on existing stations.
- View data received by decoders.
- View data inserted in NovaStar.
- Identify issues with station configuration that impact data transmission.
Contact us: info@trilynx.systems
NovaStar Administrator
Primary Users
- NovaStar System Administrators.
- TriLynx Support.
System Configuration & Administration
- Configure environmental monitoring stations, including setup, metadata, and communication settings.
- Configures data ingestion pipelines, validation rules, and processing parameters.
- Defines alarm triggers and notification behaviors.
- Manages user accounts, roles, and access permissions across the system.
- Monitors system health and performance, connectivity, and data flow across servers and remote stations.
- Supports database configuration, redundancy settings, and system-wide failover controls.
- Enables administrative control over integrations, services, and system-wide operational behavior.
Contact us: info@trilynx.systems
NovaStar Operator
Primary Users
- Emergency Managers.
- System Operators.
- System Stakeholders.
- Public.
Situational Awareness for Decision Support
- Map-based display of real-time environmental data from NovaStar with overlay layers including National Weather Service watches and alerts, radar, and other dat.
- Each station displays data status indicators, historical context, and alarm conditions.
- Station-level dashboards display historical, real-time, and, if available, forecast data.
- Enables users to monitor critical conditions for the entire system.
- Supports data export in standard formats (CSV, JSON) for analysis and reporting.
- Can be implemented with different configurations for internal and public data access.

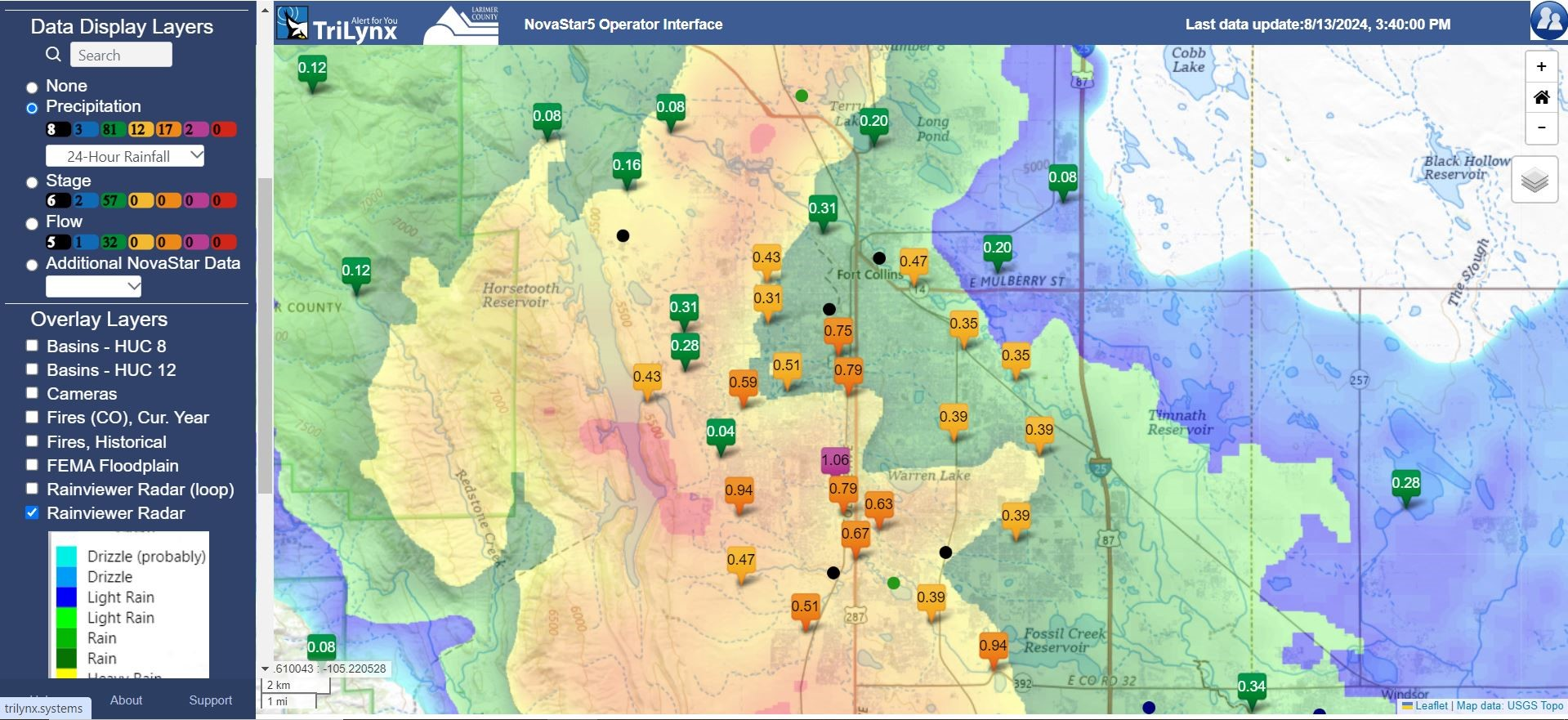

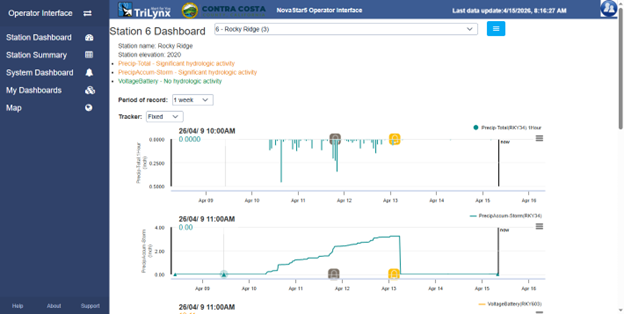

Station Dashboard with Alarms- Storm with Radar and Alarms

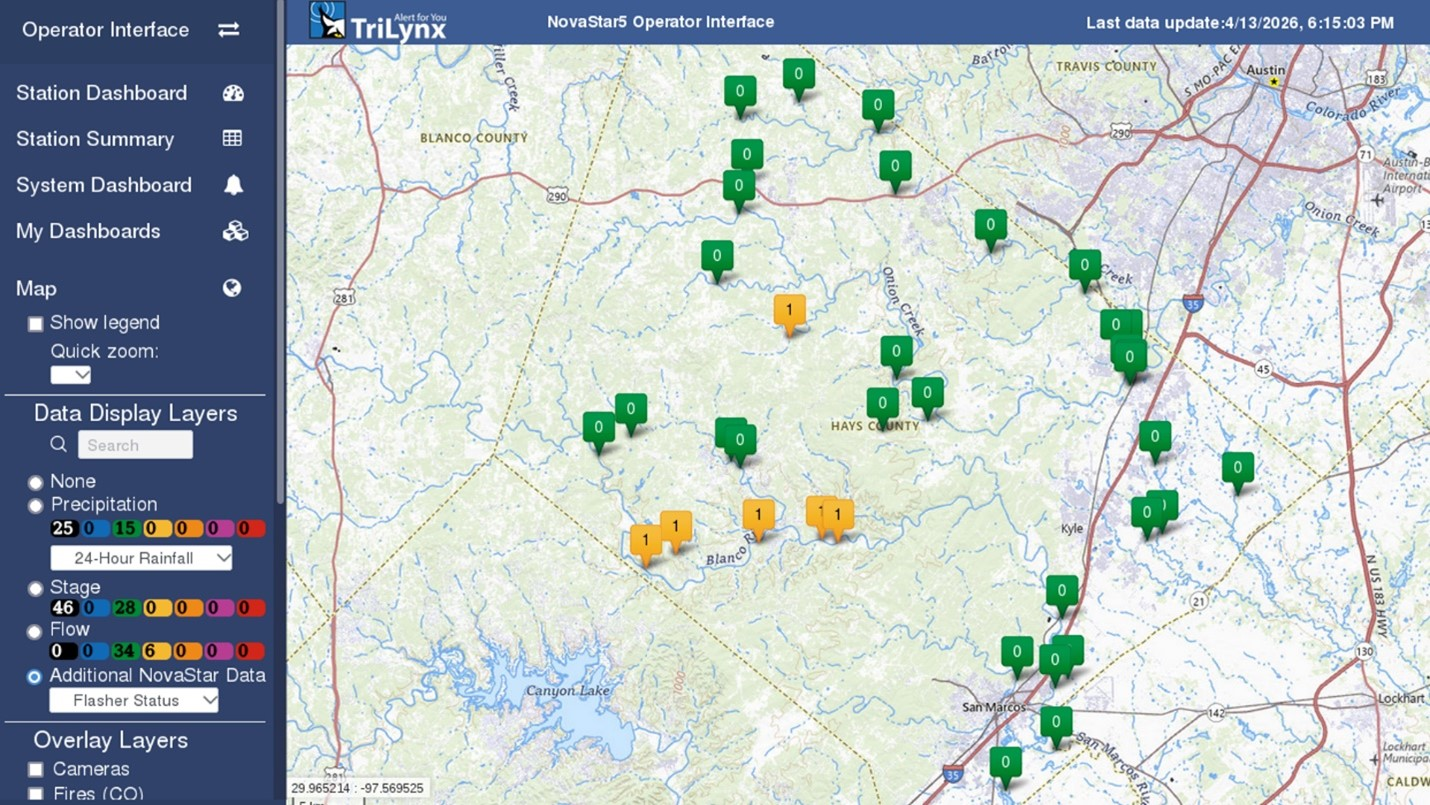

- Device Status

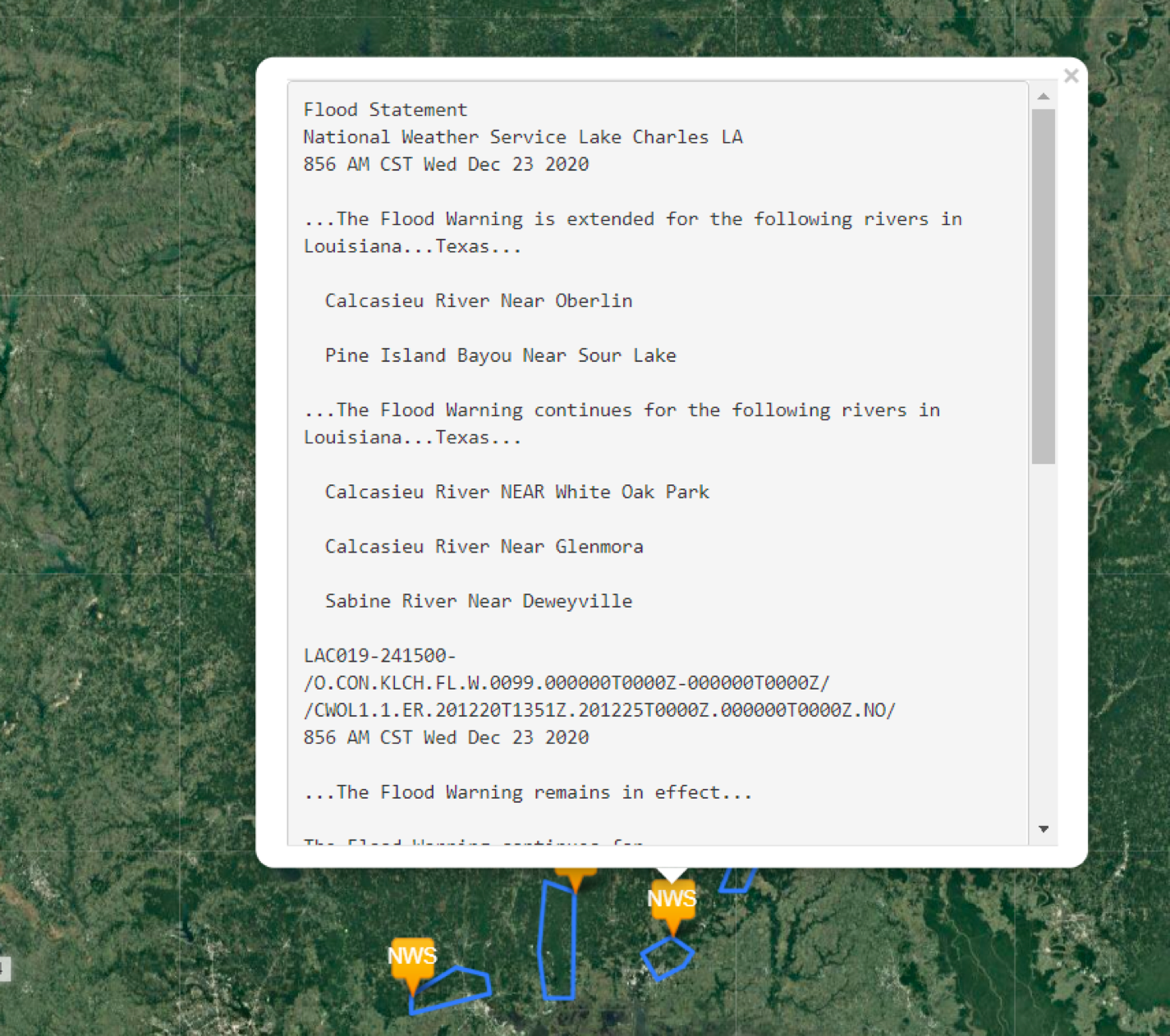

- National Weather Service Watch/Alert
Contact us: info@trilynx.systems
NovaStar Data Explorer
Primary Users
- Data Quality Reviewers.
- Researchers.
- Modelers.
Historical and Real-Time Data Viewieng
- Provides interactive access to historical and real-time data for all monitoring stations.
- Enables users to query, filter, and visualize datasets over customizable time ranges.
- Displays time-series graphs and comparative analysis of environmental variables (e.g., precipitation, flow, stage, water quality).
- Supports multi-station comparisons for basin-wide and regional analysis.
- Allows data export in standard formats (CSV, JSON) for external analysis and reporting.
- Facilitates data discovery for research, planning, and operational review.
- Serves as a tool for in-depth exploration beyond real-time monitoring and alerts.
Data pulled from NovaStar
Control panels for custom selections
Filter by ID, name, data type or interval, or with global filter
Download preferences
